Fenice System
Homogeniser
K30-40

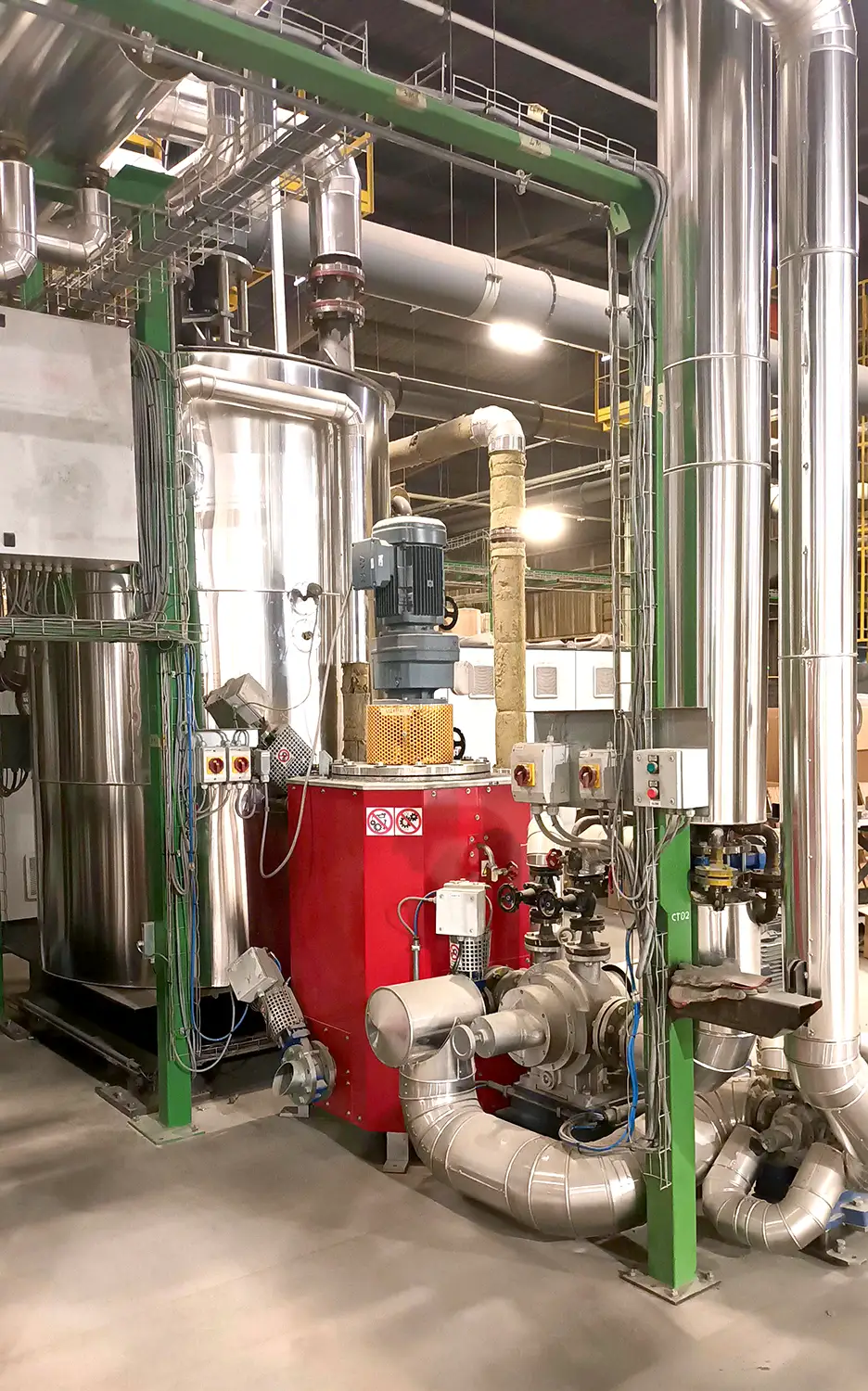

Homogeniser K30-40:
Machine to contribute to environmental sustainability.
Homogenising/Filtering/refining machinery for bitumen and bitumen compound base.
It makes the compound smooth and shiny and destroys all the impurities inside.
Usually installed between the primary/preparation mixer and the secondary/holding mixer.
Exceptional filtration up to 0,2mm.
It has a triple fuction: filtration/ shredder/ homogenisation.
With this equipment it’s possible to work different kinds of compound with:
- SBS / APP / SBR
- Recycling material from waterproofing membrane
- Filler / Other materials / CaCO3
- mineral/slate
Capacity:
up to 80cm/h
Diathermic oil temperature:
from 180°C to 200°C
Special design holes:
from 55.000 to n° 75.000
Electrical power installed:
30-40Kw
The video illustrates the different components that make up the Homogeniser K30-40 using a scale model created with 3D printing.
